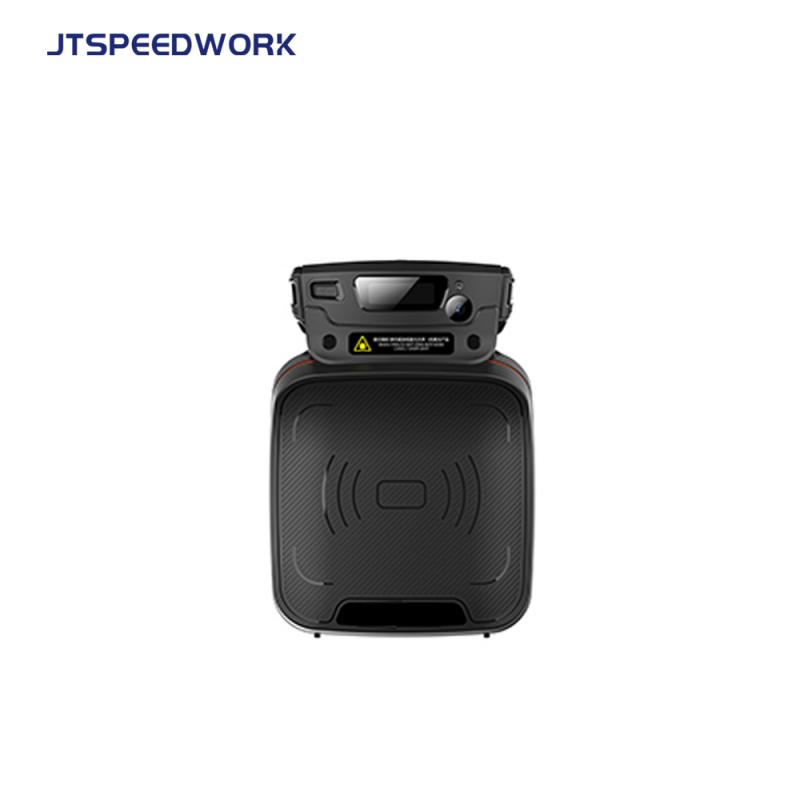

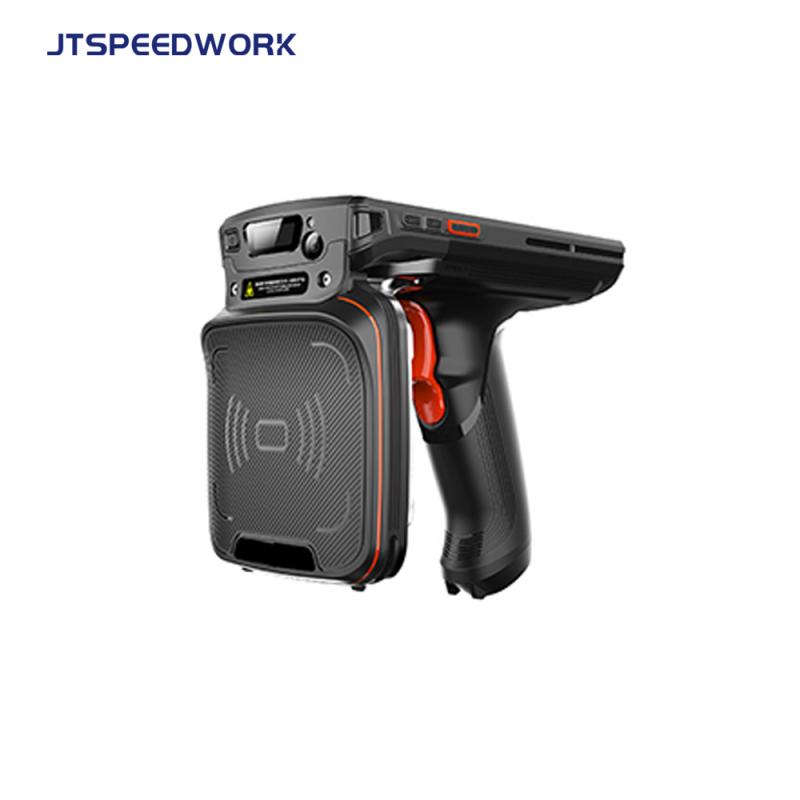

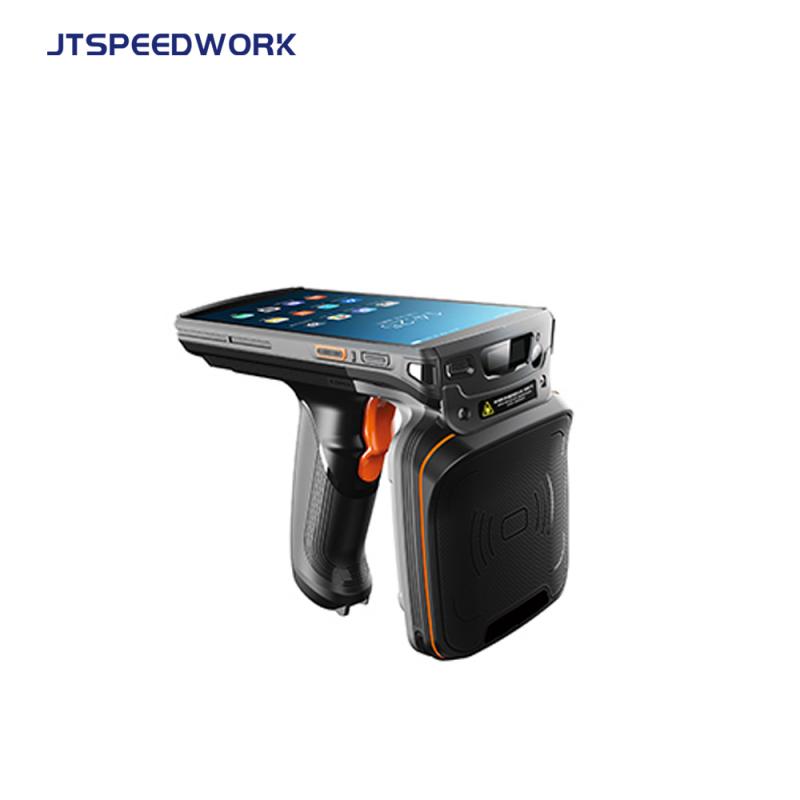

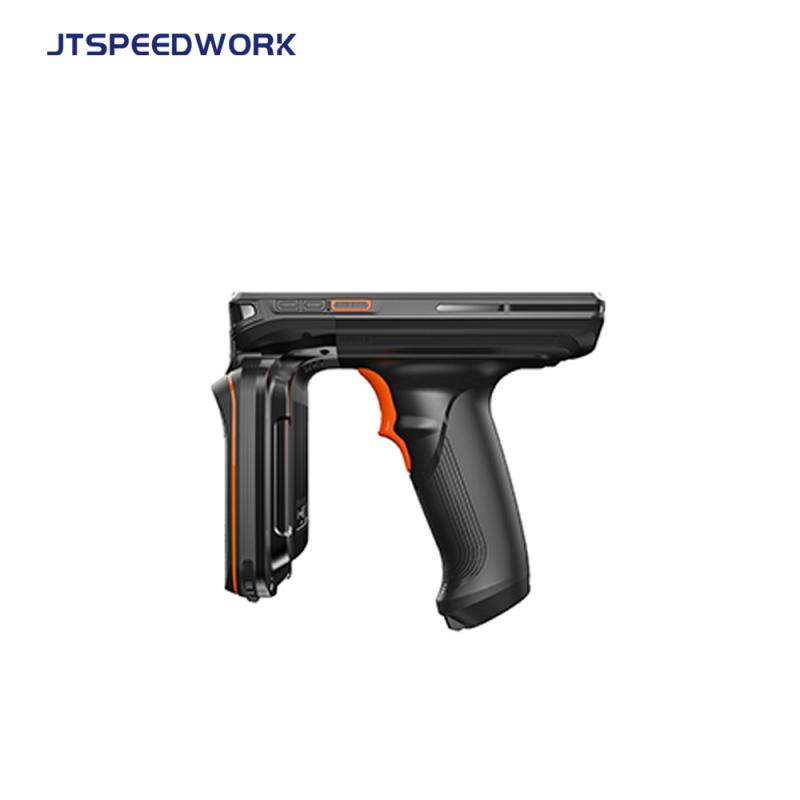

Brand:
JTSPEEDWORKItem NO.:
JT-DT50UOperating system
Android 9.0Working frequency:
860-960MHzProtocol:
ISO18000-6CRF chip:
Impinj R2000
| Performance Parameters | Data Communication | |||
| Model | JT-DT50U | Wireless WAN | Dual SIM Dual Standby 4G, 3G, 2G all network | |
| Operating system | Android 9.0 | Bluetooth | BT5.0 + BR/EDR + BLE | |
| Processor | Octa-core 64-bit, 1.8 GHz | WIFI | 2.4G/5G dual-band, IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w protocols | |
| Memory | RAM+ROM: 3 GB+ 32 GB | Fast roaming: 802.11r/OKC/PMKID caching | ||
| Expanded Memory | Micro SD card, up to 256GB | Position | Support GPS, A-GPS, Beidou, GLONASS, Galileo | |
| Basic Specifications | Usage Environment | |||
| Dimensions | 143.3mmx169mm×90.5mm | Operating temperature | -20 ～ +60℃ | |
| Machine weight | 678g | Storage temperature | -40 ～ +70℃ | |
| Display | 5. 5- inch full color screen (720×1440) | Humidity | 5%RH～95%RH (no condensation) | |
| Touch screen | Support multi-touch, glove touch, water operation and passive pen signature | Shock proof height after falling to the ground | Can withstand multiple drops from a height of 1.2 meters onto a smooth concrete floor | |
| Main battery | 3.85V 9000mAh rechargeable lithium battery | Protection level | IP67 | |
| Charging time | No more than 7 hours | Electrostatic protection | Air discharge ±15KV, contact discharge ±8KV | |
| Audio | 1.5W speaker, two microphones (supports noise reduction), earpiece | |||
| Button | Physical buttons: volume +, - buttons, power button, 1 custom button , 2 scan buttons | |||
| Camera | Front camera 500W pixels | |||
| Top mounted 1600W camera, supports flash | ||||
| Sensor | Distance, light sensitivity, acceleration, geomagnetism , gyroscope | |||
| Scanning | Professional scanning head, supports scanning mainstream one-dimensional and two-dimensional codes, supports screen scanning | |||
| Card slot type | Nano-SIM x 2, Micro SD x 1, supports up to 256GB expansion | |||
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
